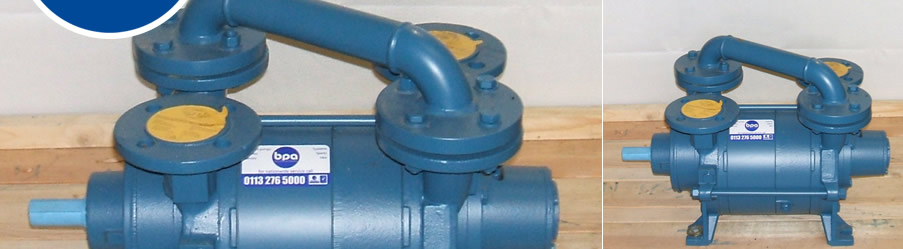

Liquid Ring - Vacuum Pump

Vacuum Pumps ? Liquid Ring

The most robust design of vacuum pump, Liquid Ring units have been proven in many industries. Particularly suitable for processes where hot or aggressive liquids or gases are drawn back to the pump, it is also tolerant to small amounts of solid contamination.

APPLICATIONS: VACUUM FORMING CONVEYING, CONVERTING, PACKAGING, GENERAL INDUSTRIAL



Pump Flow Vacuum Pressure Motor Rating Noise Level Weight Connection
[m3/h] [mbar] (abs) bar g [KW] dB (A) Kg Size "
ME 65 90 33 0.5 3 70 63.0 1½" BSP
ME 160 180 33 0.5 5.5 70 73.0 1½" BSP
KE 180 250 100 0.5 5 - 25 70 79.0 DN40
KE 200 300 33 0.5 5 - 25 70 82.5 DN40
KE 225 280 100 0.5 7.5 - 35 70 85.0 DN40
KE 300 320 33 0.5 7.5 - 35 70 89.5 DN40
NE 180 250 100 0.5 5 - 25 70 79.0 DN40
NE 200 300 33 0.5 5 - 25 70 82.5 DN40
NE 225 280 100 0.5 7.5 - 35 70 85.0 DN40
NE 300 320 33 0.5 7.5 - 35 70 89.5 DN40
KL 350 400 100 1.0 7 - 37 70 100.0 DN50
KL 400 500 33 1.0 7 - 37 70 100.0 DN50
KL 430 530 100 1.0 9 - 40 70 112.0 DN50
KS 500 600 100 3.0 7.5 - 30 80 190.0 DN100
KS 725 850 100 3.0 11 - 40 80 209.0 DN100
KS 1025 1300 100 3.0 15 - 55 80 228.0 DN100
KS 1800 1800 100 1.0 18.5 - 90 82 390.0 DN125
KS 510 625 65 3.0 7.5 - 45 80 190.0 DN100
KS 625 750 65 3.0 11 - 75 80 228.0 DN100
KS 910 1050 65 3.0 15 - 90 80 228.0 DN100
KM 2200 2500 150 2.0 45-110 80 450.0 DN125
KM 2700 3000 150 2.0 45-110 80 510.0 DN125
