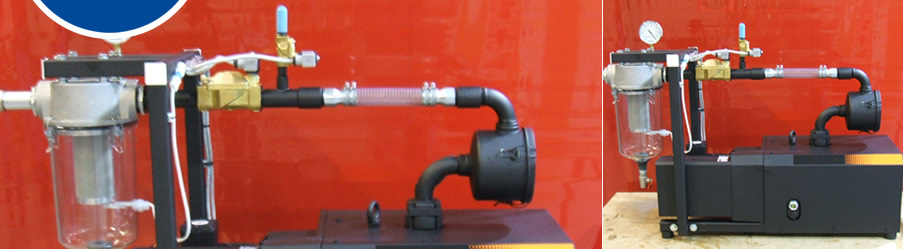

Rotary Claw - Vacuum Pump

Vacuum Pumps ? Claw Type

The latest development in oil free pumping, offering simple wear free, non contact construction, these pumps are equally suited to stand alone duty or operation as part of a centralised system. Separate vacuum and pressure stages mean that high pressure differences are attainable. Reliability, very low maintenance requirements and high efficiency make up to unbeatable whole-life costs.

APPLICATIONS: PRINTING, PACKAGING, CONVEYING, AERATION ETC



Pump Nominal Displacement Ultimate Pressure Motor Rating Noise Level Weight Connection
m3/h mbar abs kW dB(A) Kgs
MM 1104 BV 62 60 1.3 66 166 G11/4
MM 1144 BV 78 60 1.8 66 172 G11/4
MM 1102 BV 105 60 2.8 75 168 G11/4
MM 1142 BV 140 60 3.5 75 179 G11/4
MM 1324 AV 160 60 3.0 70 225 G2
MM 1202 AV 200 100 4.2 75 234 G2
MM 1252 AV 250 100 5.0 75 238 G2
MM 1322 AV 300 150 6.0 77 240 G2
MM 1402 AV 400 200 7.5 79 340 G2
MI 1502 BV 500 250 9.2 85 390 G3
MI 2124 BV 50 20 1.5 75 125 G11/4
MI 2122 BV 120 20 4.0 77 135 G11/4

Download data sheet
