Side Channel - Vacuum Pump

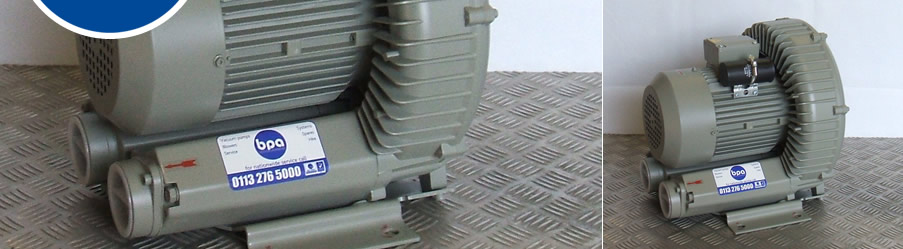

Side Channel Single Stage Vacuum Pumps and Blowers

Practically maintenance free and suitable for applications requiring large volumes of clean, dry air at low pressures and vacuums. Advances in side channel technology means that these designs can now operate deeper into vacuum pressure and also provide both duties simultaneously. Compact and rugged they can be mounted in any orientation to suit the application. Now available with integrated intelligent variable speed drive, side channel units are the first choice in many automation projects.

APPLICATIONS: CONVEYING, AERATION, LIFTING, AIR TRANSPORTATION, PRINTING, PACKAGING, GENERAL INDUSTRIAL



Description KW Flow Vacuum Noise Level Weight Connection
m3/h mbar. dB (A) Kg. Size "

Three phase
SKS 80 0.40 84 130 58 11,5 G 1¼
SKS 140 0.75 144 150 63 14,5 G 1½
SKH 250 1.30 216 180 70 22 G 2
SKH 250 1.75 216 210 70 23 G 2
SKH 300 2.20 312 220 72 32 G 2
SKH 300 3.40 312 255 72 35 G 2
SKS 475 5.50 552 250 74 78 G 2½
SKS 550 7.50 552 350 74 82 G 2½
SKS 1000 13.00 1134 305 76 112 G 4

SKS 80 2V 0.75 90 200 60 17 G 1¼
SKS 156 2V 1.75 156 275 66 25 G 1½
SKS 156 2V 2.20 156 320 66 28 G 1½
SKS 222 2V 3.40 222 345 74 43 G 2
SKS 400 2V 4.00 312 380 75 55 G 2
SKS 475 2V 5.50 312 470 75 72 G 2
SKH 570 2V 11.00 576 450 76 142 G 2½

Single phase
SKS 50-S 0.20 50 80 57 7.0 G 1¼
SKS 80-S 0.40 84 130 58 11.5 G 1¼
SKH 144-S 0.75 144 150 63 16.5 G 11/2
SKH 250-S 1.10 216 160 70 26.0 G 2
SKH 250-S 1.50 216 210 70 26.5 G 2
SKS 80 2V-S 0.75 90 200 60 17.5 G 1¼
