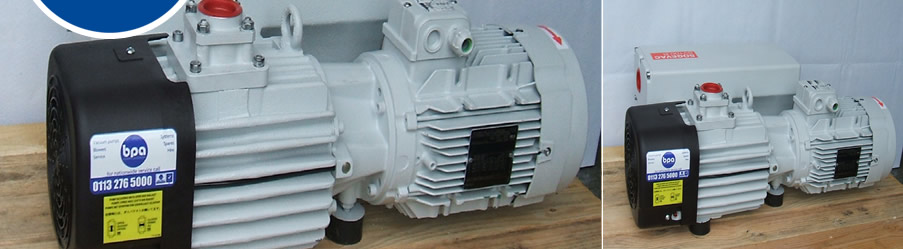

Oil Lubricated Rotary Vane - Vacuum Pump

Vacuum Pumps ? Oil Lubricated Rotary Vane

The workhorse of industry, these pumps have been designed to give long and reliable service in almost every application. A simple and rugged design makes these pumps ideal for continuous operation in most vacuum applications. A highly efficient separation system ensures that the exhausted air remains free from oil mist. High vacuum levels down to 0.5mbar are achievable.

APPLICATIONS: VACUUM PACKAGING, FORMING, LIFTING, DEGASSING,GENERAL INDUSTRIAL



Pump
 Nominal Capacity Ultimate
Pressure
† 		Ultimate
Pressure
♦ 		Permissable
Water Vapour
♦ 		Motor Rating Noise Level Weight Connection
m3/h mbar mbar Kgh-1 Kw dB(A) KG
SV10 B
 11 ≤ 1.50 ≤ 2.5 0.02 0.6 60 20 G ¾ G½
SV16 B
 16 ≤ 1.00 ≤ 2.0 0.03 0.6 60 20 G ¾ G½
SV25 B
 26 ≤ 0.50 ≤ 0.8 0.09 0.9 64 27 G ¾ G½

SV40 B
 44 ≤ 0.50 ≤ 1.5 0.76 1.1 58 43 G 1 ¼
SV65 B
 59 ≤ 0.50 ≤ 1.5 1.00 1.5 60 49 G 1 ¼
SV100 B
 97.5 ≤ 0.50 ≤ 1.5 1.60 2.2 61 75 G 1 ¼
SV120 B
 130 ≤ 0.50 ≤ 1.5 1.60 2.4 61 88 G 1 ¼

SV200
 180 ≤ 0.08 ≤ 0.7 3.40 4.0 69 140 2"
SV300 B
 280 ≤ 0.08 ≤ 0.7 5.40 5.5 70 200 2"

SV500 B
 570 ≤ 0.08 ≤ 0.7 13.00 11.0 70 630 DN100
SV630 B
 700 ≤ 0.08 ≤ 0.7 17.00 15.0 72 650 DN100
SV750 B
 840 ≤ 0.08 ≤ 0.7 24.00 18.5 75 650 DN100
SV1200
 1150 ≤ 0.10 ≤ 1.5 12.50 22.0 75 1370 DN125

†
without Gas Ballast

♦
with Gas Ballast

Performances at 50Hz
